FIRE SUPPRESSION SYSTEM
CABINET FIRE SUPPRESSION SYSTEM
1. Installs inside equipment closer to the source.
• Compact and Flexible
• Installs almost anywhere
• Even in hard to reach spaces
• Just cm from critical circuitry and mechanics
• No external power source needed
2. Quickly detects and suppresses fires.
• The tube is pressurized to 16 bar.
• It bursts at 110° C or 175°C – at early sign of fire.
• The drop in pressure instantly actuates the valve.
• Extinguishing agent floods the compartment.
• The fire is suppressed in just seconds.
TECHNOLOGY OVERVIEW
INDIRECT SYSTEM
• Detection tube: only detection function
• Discharge: separate discharge system (nozzle)
• The most effective performance: quicker discharge
• Possible manual actuation
DIRECT SYSTEM (<1 M3)
• Detection tube: detection & discharge function
• Discharge: via burst hole
• Ideal for: very small and difficult-to-access enclosures (<1m3)
• More Economical
• Very easy to install
APPLICATION
ELECTRICAL CIRCUITRY
* Electrical cabinets
* Control boxes
* Recharging stations
* Switch panels
* Relay stations
MACHINERY
* CNC Machines
* Construction machinery
* Agricultural machines
* Construction equipment
* Forklifts
OILS, CHEMICALS AND OPEN FLAME
* Fume Cabinets
* University laboratories
* Paint & Chemical storage
* Petroleum storage tanks
* Hydraulic circuits
COOKING AREAS
* Commercial Kitchens
* Food trucks
* Grease-based fires
VEHICLE ENGINES
* Buses & Trucks
* Trains & Trams
* Farm Equipment
* Military Vehicles
* Cargo containers
* Construction Equipment
* Cranes
* Boats
INDIRECT SYSTEM
INERT GAS ROOM FIRE SUPPRESSION SYSTEM
GENERAL PROPERTIES
• Naturally present on earth
• Electrically non-conductive
• Non-toxic
• Not liquefied gas
Eliminating the OXYGEN to GAS
OXYGEN LEVEL
• Below 15% oxygen, fire triangle is broken and fire is extinguished
• Above 12% oxygen, leave area within 5 min.
• 10 - 12% oxygen, leave area within 3 min.
• Below 10% oxygen, only unmanned areas

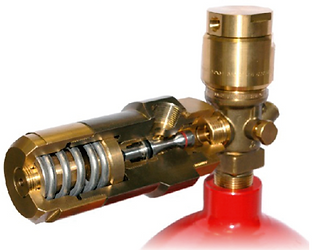

PRESSURE REGULATOR
• Discharge pressure modulated to a constant flow 40 bar static pressure within 60 to 120 seconds with significant performance and cost benefits
Better safety :
• Prevents pressure peak at discharge starting
• Lower pressure into the discharge line
Saves time and money :
• Enables low pressure manifolds & smaller pipework to be used – cost saving and easy to install
• Reduces the area of the pressure vents in the protected space – cost saving
Easy maintenance:
• After a system discharge, simply remove the regulator, recharge, and reconnect. No reconditioning necessary
• Functional tests possible even when armed
REGULATOR DISCHARGE DEMO
DIMES DIGITAL MEASUREMENT SYSTEM
IMPROVE CERTAINTY OF SYSTEM READINESS
• Digitally monitors cylinder contents 24/7
• Proactively warns in the event of a leak or problem
• Temperature-compensated technology
INCREASES PRODUCTIVITY
• Verify cylinder contents with greater accuracy
• Eliminates need to periodically dismount / weight cylinders to verify contents
• Interventions needed only when the system sends a warning signal
TECHNOLOGIES AVAILABLE FOR BOTH
FIXED SYSTEMS AND OBJECT
PROTECTION
APPLICATION
Electronic Directional Valve
SINGLE ROOM PROTECTION
MULTIPLE ROOM PROTECTION
MULTIPLE ROOM PROTECTION
